Direct Flight is a rack-attached Multi-Flight with dual cable cams that delivers commercial machine performance without the sprawling footprint. It's the answer to the gap between compact rack attachments and full-size standalone machines—built for gyms that demand real feel without real estate sacrifice.
Using a clean direct cable path (cable → single pulley → load), Direct Flight maintains a consistent resistance curve across the range of motion. The attachment mounts via a simple hinge & pin trolley method to 3x3 uprights with 1" or 5/8" holes, and integrates seamlessly with VTS, VTS Lite, functional trainer stacks, REP Ares, and Voltra systems.
Dual Cable Cams
True cam-driven feel with independent routing to different load sources, delivering the resistance curve you'd expect from a commercial machine.
No Drop-Off
Plate-loaded lever attachments fade where the contraction should hit. Direct Flight's cam design keeps peak tension strong through the full range.
Commercial performance without commercial sprawl. No connecting flights.
Measurements & Dimensions
Refer to the diagrams below for detailed Direct Flight Hinge & Pin Trolley measurements and dimensions.
Can the arms be fixed, or do they always move?
You can lock the hinge points for a fixed plane, or pull the pin to let them move freely. Fixed when you want it. Free when you want it. This flexibility lets you switch between stabilized Multi-Flight patterns and freely moving arm work depending on your training goal.
Will it work with Beyond Power Voltra or REP Ares?
Yes. The floating pulley + carabiner approach allows clean integration with both systems. Important note: Ares runs at 2:1 leverage, so combined with Direct Flight's ~0.44 reduction, felt load drops to approximately 22% of selected stack in two-arm use. Voltra integration works similarly—plan your stack size accordingly. Stronger users may need longer weight horns or a Gym Pin to add plates.
What's the footprint off the rack?
The Multi-Flight unit sits about ~11" off the front of the rack. The trolley sits about ~4" off the back, and the weight horns extend to about ~14" from the rack. This compact profile is why it fits like an attachment but moves like a machine.
How does the mounting system work?

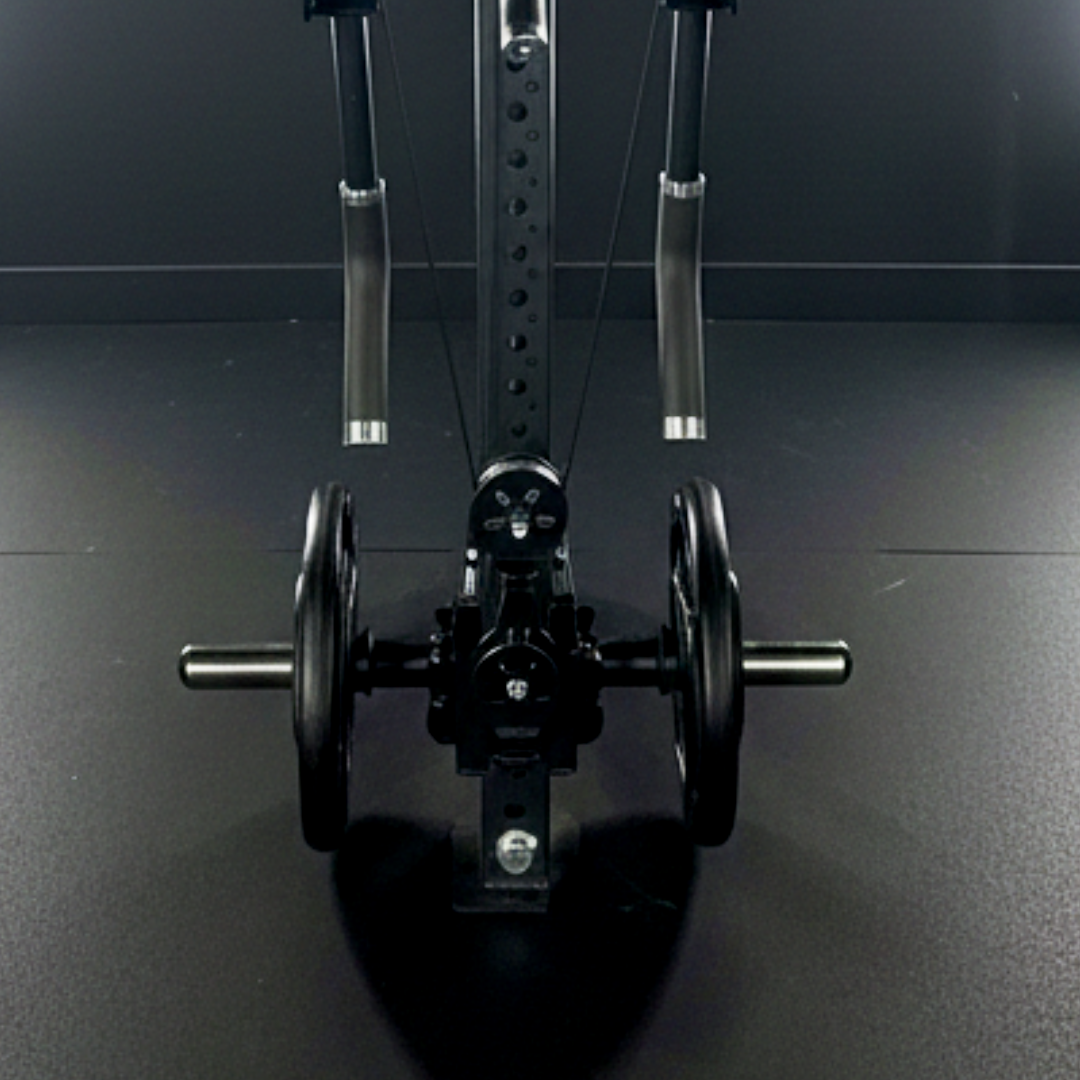

Direct Flight uses a hinge & pin trolley method. Wrap the trolley around the 3x3 upright like a door hinge, slide the pin through, and you're locked in. Grab the integrated side handles, line it up on the face of the upright, pin straight through, and thumb nut on the back. No tools, no drama. You can leave it as a dedicated station or pull it off when you want the rack space back.
What equipment does Direct Flight NOT work with?
Direct Flight requires 3x3 uprights with 1" or 5/8" holes for rack-face mounting. It does not work with 2x2, 2x3, or other non-standard upright profiles. For VTS and VTS Lite integration, use the specified carabiner/side mount or Mini Barbell connection methods. Always confirm hole size and upright dimensions before ordering.
What's the felt load difference between two-arm and isolateral use?
In two-arm use, the felt load is approximately 44% of the loaded weight (e.g., 90 lb loaded
Direct Flight Hinge & Pin Trolley
Box dimensions: 32" L × 13" W × 10" H
Metric: 81 cm L × 33 cm W × 25 cm H
Shipping weight: 25 lb (11.3 kg)
