VBS Vertical Belt Squat System
Sale price
$1,249.99
Regular price
$1,299.99
Skip to product information
VBS Vertical Belt Squat System
Sale price
$1,249.99
Regular price
$1,299.99
Insured Shipping
One Year Structural Warranty
30 Day Money Back Guarantee
The VBS Vertical Belt Squat System delivers true vertical, plate-loaded resistance with an ultra-compact footprint designed for real gyms. Lock it for strict vertical reps or unlock it for natural 3D hip articulation without swing, pulley drag, or lever arcs. This is a complete vertical belt squat platform engineered to expand with future attachments.
Built on a foundation of 8 rollers for greater force distribution and smooth tracking under heavy load, the VBS combines direct plate-loaded resistance with lockable movement control and fast drop set changes. The arm folds away, horns remove, and footplates store — making it one of the most compact belt squat solutions available while maintaining serious load capacity and stability.
True Vertical Load
Direct plate-loaded resistance with no cable drag, no lever arc, and no pulleys. What you load is what you feel.
Lockable 3D Movement
Lock for strict vertical hypertrophy work or unlock for natural hip articulation on horizontal linear bearings with minimal resistance.
Ultra-Compact Storage
Fold the arm, remove horns, and hang footplates for minimal stored footprint — 25.5" from wall when not in use.
Expandable Platform
Built as a foundation for future attachments. Hack squat development is already in progress.
More capability per square inch and more value per dollar than single-use standalone belt squat machines.
The VBS solves the core problems with existing belt squat solutions: lever-based systems create arc paths, cable-driven machines introduce pulley friction and tether geometry limits, free-hanging weight creates unwanted swing, and most standalone machines are bulky. The VBS delivers a direct, clean force path with the flexibility to lock or unlock movement, all in a compact footprint that fits in real training spaces.
vs. Lever-Based Systems
True vertical plate-loaded path instead of fixed arc resistance curves. No "middleman" changing your resistance profile as you move through the rep.
vs. Cable-Driven Machines
Direct load with zero pulley friction. No cable drag. Engagement stays clean and predictable under heavy loading.
vs. Free-Hanging Weight
Controlled freedom: move naturally with the hip articulation, but without the swing and momentum you must stabilize in free-hanging setups.
vs. Standalone Machines
Compact storage (25.5" folded) with expandable platform design. Build around it with future hack squat and attachments — not replace it.
More compact than standalone machines. More versatile than cable systems. More efficient than lever designs.
- 8 Roller Trolley System: 4 rollers stacked high with 8 total rollers for greater force distribution, reduced binding under heavy front-loaded weight, and smoother vertical tracking.
- Lockable/Articulating Movement: Engage locked mode for strict vertical reps or unlock horizontal linear bearings for natural 3D hip articulation with minimal resistance even under 500+ lbs of load.
- Fatigue-Proof Pin Engagement: Knurled lever drives plunger pin in and out of the upright for fast, confident start and stop engagement even when fatigued.
- Removable Weight Horns: Quick-release design reduces overall width when horns are removed, increasing portability and storage efficiency without sacrificing load capacity.
- Fold-Up Belt Squat Arm: Stores tight to the wall in minutes, reducing footprint from 43" in-use depth to just 25.5" when folded.
- Adjustable Wraparound Handles: Fully knurled, spring-pin adjustable handles offer depth and grip position adjustability for varied hand placement and user comfort.
- Dual-Purpose Footplates: Provide full depth elevation and adjustable wedge angles for varied stance work and squat positioning.
- Fast Drop Sets: Plates load directly in front within arm's reach, enabling quick weight changes and drop sets without leaving the station.
Vertical belt squatting is a proven training method for building lower body strength while reducing axial spinal loading. The VBS adds two critical refinements: strict lockable vertical movement for hypertrophy-focused reps, and controlled 3D articulation for natural hip mechanics without the unwanted swing and momentum compensation that free-hanging systems introduce.
Locked Mode (Strict Vertical)
Pure vertical force path with zero horizontal movement. Ideal for consistent rep tracking, hypertrophy work, and reducing momentum-dependent loading patterns.
Unlocked Mode (3D Articulation)
Horizontal linear bearings allow natural hip hinging with minimal resistance. Even under 500+ lbs, a light nudge confirms smooth forward/back travel with zero "swinging mass" destabilization.
Reduced Axial Spinal Load
Vertical belt squat mechanics transfer load through the pelvis and hips, bypassing the intervertebral discs — making it a lower-demand alternative to barbell back squatting for strength development.
Direct Force Feedback
No cable slackness, no lever lag, no pulley transition zones. Immediate, predictable load sensation throughout the entire range of motion.
Vertical loading built on proven biomechanics — then enhanced with the flexibility to control movement constraints based on rep goal and training phase.
The VBS features a 12" drop-down design that ensures full range of motion regardless of where the mounting bracket needs to be positioned on the wall.
Obstruction-Friendly Setup
Designed to work around concrete lips or base-level obstructions — no need for a clear floor-level wall surface.
Bracket Height Requirement
Install the mounting bracket no more than 12" from the ground to maintain full functionality with the drop-down system.
Mount the bracket within 12" of the ground — the drop-down design handles the rest.
The VBS is a wall-mounted, dedicated system designed as a standalone vertical belt squat platform. It is not a rack attachment and requires its own dedicated upright.
- Upright Specification: 3x3" uprights with 1" holes
- Wall Mount: Requires wall-mounted 3x3 upright (68" tall) sold as part of the complete system
- NOT compatible with: Existing racks, quick-change designs, or portable mounting solutions
- Belt Compatibility: Works with any standard dip/belt squat belt; pairs optimally with Bulletproof Cloud 9 or CloudLite belts
- Future Expandability: Designed platform foundation for upcoming hack squat and additional attachments in development
This version requires a dedicated wall-mounted upright and cannot be easily added to or removed from existing equipment. It is engineered as a permanent or semi-permanent installation.
- 1x VBS Trolley: 4 rollers high / 8 rollers total with vertical plate-loaded resistance system.
- 1x Wall-Mounted Upright: 68" tall • 3x3" • 1" holes for dedicated installation.
- 1x Lockable/Articulating Horizontal Movement System: Linear bearings for locked vertical mode or natural 3D hip articulation.
- 1x Fatigue-Proof Plunger Pin Engagement: Knurled lever for fast and confident start/stop control.
- 2x Removable Weight Horns: Quick-release horns that remove to reduce stored width.
- 1x Fold-Up Belt Squat Arm: Stores tight to wall for ultra-compact footprint.
- 1x Adjustable Wraparound Handles: Fully knurled, spring-pin adjustable, with depth and grip position adjustability.
- 1x Dual-Purpose Footplates: Provide full depth elevation and adjustable wedge angles for varied squat positioning.
- Trolley Configuration: 4 rollers high / 8 rollers total
- Wall Upright: 68" tall • 3x3" • 1" holes
- Conservative Max Load Rating: 650 lbs
- Starting Weight (Unloaded): 83 lbs
- Stored Depth (Arm Folded): 25.5" from wall
- In-Use Depth (Arm Down): 43" from wall
- Width (Horns Removed): 8.5"
- Width (Handles Installed): 20.5" (widest point)
- Wall to Upright: 11"
- Wall Bracket Width: 12"
- Wall Bracket to Upright: 8"
- 12" Drop-Down Design: Allows full range of motion when mounting bracket installed up to 12" from ground
- Structural Warranty: 1 year against defects in materials and workmanship
- Wear Guards / Consumables / Upholstery Warranty: 90 days against defects in materials and workmanship
The VBS features an 83 lb starting weight. Optional Bulletproof Lift Assist counterweight options will be available as add-on accessories to reduce the effective starting resistance for rehab, warm-ups, or lighter training phases.
VBS Footprint & Dimensions
Can the VBS be attached to my existing rack?
No. This version requires a dedicated wall-mounted upright (68" tall, 3x3" with 1" holes) and cannot be easily added to or removed from existing equipment. It is engineered as a permanent or semi-permanent installation for standalone use.
Can I lock the movement completely vertical?
Yes. The VBS offers two modes: locked mode for strict vertical reps ideal for hypertrophy work, or unlocked mode for natural 3D hip articulation on horizontal linear bearings. You choose based on your training goal.
Is there horizontal resistance when the system is unlocked?
No, minimal resistance. Even under 500+ lbs of load, a light nudge slides the system forward or back smoothly. This means natural hip hinging without the swing and momentum you get with free-hanging weight setups.
What is the load capacity of the VBS?
The conservative max load rating is 650 lbs. The system is built with an 8-roller foundation to handle serious front-loaded belt squat weight while maintaining smooth tracking and stability.
How much space does the VBS take up when stored?
Stored footprint is 25.5" from wall with the arm folded up. Width is 8.5" with horns removed, or 20.5" with handles installed. Remove weight horns, fold the arm, and hang footplates for an ultra-compact profile.

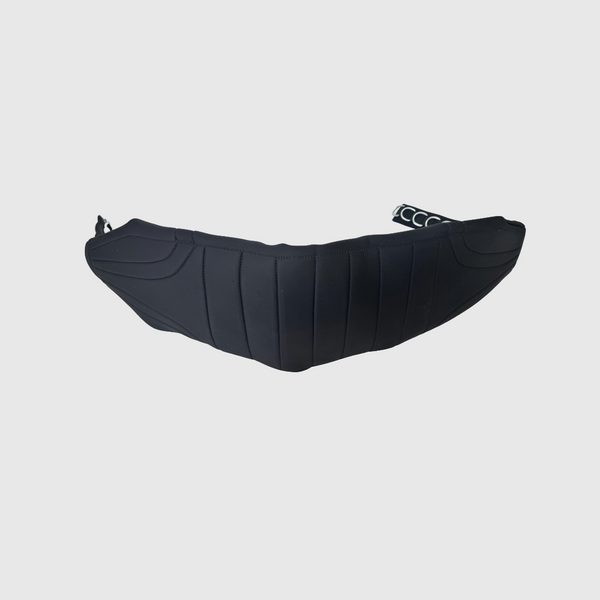

Can I use any belt with the VBS?
Yes, the VBS works with any standard dip or belt squat belt. However, it pairs optimally with the Bulletproof Cloud 9 Belt (maximum support and comfort under heavy loading) or CloudLite Belt (lighter, streamlined option for dynamic training).
Will future attachments be available for the VBS?
Yes. The VBS is designed as an expandable platform. A hack squat attachment is already in development, and additional attachments will be released to build out the system's capabilities.
What is the starting weight (empty) of the VBS?
The VBS has a starting weight of 83 lbs unloaded. For lifters who want a lighter "empty" feel (rehab, warm-ups, higher reps, or smaller athletes), optional Bulletproof Lift Assist counterweight options will be available as add-on accessories.
How is drop set loading on the VBS?
Plates load directly in front of you within arm's reach, making drop sets and quick weight changes fast and efficient. You don't have to leave the station or fumble with loading mechanisms.
What warranty does the VBS include?
Structural components are covered by a 1-year warranty against defects in materials and workmanship. Wear guards, consumables, and upholstery are covered for 90 days. Warranty is non-transferable and applies to the original purchaser under normal use conditions.
Overview
The VBS Vertical Belt Squat System delivers true vertical, plate-loaded resistance with an ultra-compact footprint designed for real gyms. Lock it for strict vertical reps or unlock it for natural 3D hip articulation without swing, pulley drag, or lever arcs. This is a complete vertical belt squat platform engineered to expand with future attachments.
Built on a foundation of 8 rollers for greater force distribution and smooth tracking under heavy load, the VBS combines direct plate-loaded resistance with lockable movement control and fast drop set changes. The arm folds away, horns remove, and footplates store — making it one of the most compact belt squat solutions available while maintaining serious load capacity and stability.
True Vertical Load
Direct plate-loaded resistance with no cable drag, no lever arc, and no pulleys. What you load is what you feel.
Lockable 3D Movement
Lock for strict vertical hypertrophy work or unlock for natural hip articulation on horizontal linear bearings with minimal resistance.
Ultra-Compact Storage
Fold the arm, remove horns, and hang footplates for minimal stored footprint — 25.5" from wall when not in use.
Expandable Platform
Built as a foundation for future attachments. Hack squat development is already in progress.
More capability per square inch and more value per dollar than single-use standalone belt squat machines.
Why It's Better
The VBS solves the core problems with existing belt squat solutions: lever-based systems create arc paths, cable-driven machines introduce pulley friction and tether geometry limits, free-hanging weight creates unwanted swing, and most standalone machines are bulky. The VBS delivers a direct, clean force path with the flexibility to lock or unlock movement, all in a compact footprint that fits in real training spaces.
vs. Lever-Based Systems
True vertical plate-loaded path instead of fixed arc resistance curves. No "middleman" changing your resistance profile as you move through the rep.
vs. Cable-Driven Machines
Direct load with zero pulley friction. No cable drag. Engagement stays clean and predictable under heavy loading.
vs. Free-Hanging Weight
Controlled freedom: move naturally with the hip articulation, but without the swing and momentum you must stabilize in free-hanging setups.
vs. Standalone Machines
Compact storage (25.5" folded) with expandable platform design. Build around it with future hack squat and attachments — not replace it.
More compact than standalone machines. More versatile than cable systems. More efficient than lever designs.
Features
- 8 Roller Trolley System: 4 rollers stacked high with 8 total rollers for greater force distribution, reduced binding under heavy front-loaded weight, and smoother vertical tracking.
- Lockable/Articulating Movement: Engage locked mode for strict vertical reps or unlock horizontal linear bearings for natural 3D hip articulation with minimal resistance even under 500+ lbs of load.
- Fatigue-Proof Pin Engagement: Knurled lever drives plunger pin in and out of the upright for fast, confident start and stop engagement even when fatigued.
- Removable Weight Horns: Quick-release design reduces overall width when horns are removed, increasing portability and storage efficiency without sacrificing load capacity.
- Fold-Up Belt Squat Arm: Stores tight to the wall in minutes, reducing footprint from 43" in-use depth to just 25.5" when folded.
- Adjustable Wraparound Handles: Fully knurled, spring-pin adjustable handles offer depth and grip position adjustability for varied hand placement and user comfort.
- Dual-Purpose Footplates: Provide full depth elevation and adjustable wedge angles for varied stance work and squat positioning.
- Fast Drop Sets: Plates load directly in front within arm's reach, enabling quick weight changes and drop sets without leaving the station.
Biomechanics
Vertical belt squatting is a proven training method for building lower body strength while reducing axial spinal loading. The VBS adds two critical refinements: strict lockable vertical movement for hypertrophy-focused reps, and controlled 3D articulation for natural hip mechanics without the unwanted swing and momentum compensation that free-hanging systems introduce.
Locked Mode (Strict Vertical)
Pure vertical force path with zero horizontal movement. Ideal for consistent rep tracking, hypertrophy work, and reducing momentum-dependent loading patterns.
Unlocked Mode (3D Articulation)
Horizontal linear bearings allow natural hip hinging with minimal resistance. Even under 500+ lbs, a light nudge confirms smooth forward/back travel with zero "swinging mass" destabilization.
Reduced Axial Spinal Load
Vertical belt squat mechanics transfer load through the pelvis and hips, bypassing the intervertebral discs — making it a lower-demand alternative to barbell back squatting for strength development.
Direct Force Feedback
No cable slackness, no lever lag, no pulley transition zones. Immediate, predictable load sensation throughout the entire range of motion.
Vertical loading built on proven biomechanics — then enhanced with the flexibility to control movement constraints based on rep goal and training phase.
Mounting
The VBS features a 12" drop-down design that ensures full range of motion regardless of where the mounting bracket needs to be positioned on the wall.
Obstruction-Friendly Setup
Designed to work around concrete lips or base-level obstructions — no need for a clear floor-level wall surface.
Bracket Height Requirement
Install the mounting bracket no more than 12" from the ground to maintain full functionality with the drop-down system.
Mount the bracket within 12" of the ground — the drop-down design handles the rest.
Compatibility
The VBS is a wall-mounted, dedicated system designed as a standalone vertical belt squat platform. It is not a rack attachment and requires its own dedicated upright.
- Upright Specification: 3x3" uprights with 1" holes
- Wall Mount: Requires wall-mounted 3x3 upright (68" tall) sold as part of the complete system
- NOT compatible with: Existing racks, quick-change designs, or portable mounting solutions
- Belt Compatibility: Works with any standard dip/belt squat belt; pairs optimally with Bulletproof Cloud 9 or CloudLite belts
- Future Expandability: Designed platform foundation for upcoming hack squat and additional attachments in development
This version requires a dedicated wall-mounted upright and cannot be easily added to or removed from existing equipment. It is engineered as a permanent or semi-permanent installation.
What's Included
- 1x VBS Trolley: 4 rollers high / 8 rollers total with vertical plate-loaded resistance system.
- 1x Wall-Mounted Upright: 68" tall • 3x3" • 1" holes for dedicated installation.
- 1x Lockable/Articulating Horizontal Movement System: Linear bearings for locked vertical mode or natural 3D hip articulation.
- 1x Fatigue-Proof Plunger Pin Engagement: Knurled lever for fast and confident start/stop control.
- 2x Removable Weight Horns: Quick-release horns that remove to reduce stored width.
- 1x Fold-Up Belt Squat Arm: Stores tight to wall for ultra-compact footprint.
- 1x Adjustable Wraparound Handles: Fully knurled, spring-pin adjustable, with depth and grip position adjustability.
- 1x Dual-Purpose Footplates: Provide full depth elevation and adjustable wedge angles for varied squat positioning.
Specifications
- Trolley Configuration: 4 rollers high / 8 rollers total
- Wall Upright: 68" tall • 3x3" • 1" holes
- Conservative Max Load Rating: 650 lbs
- Starting Weight (Unloaded): 83 lbs
- Stored Depth (Arm Folded): 25.5" from wall
- In-Use Depth (Arm Down): 43" from wall
- Width (Horns Removed): 8.5"
- Width (Handles Installed): 20.5" (widest point)
- Wall to Upright: 11"
- Wall Bracket Width: 12"
- Wall Bracket to Upright: 8"
- 12" Drop-Down Design: Allows full range of motion when mounting bracket installed up to 12" from ground
- Structural Warranty: 1 year against defects in materials and workmanship
- Wear Guards / Consumables / Upholstery Warranty: 90 days against defects in materials and workmanship
The VBS features an 83 lb starting weight. Optional Bulletproof Lift Assist counterweight options will be available as add-on accessories to reduce the effective starting resistance for rehab, warm-ups, or lighter training phases.
Measurements
VBS Footprint & Dimensions
Product FAQs
Can the VBS be attached to my existing rack?
No. This version requires a dedicated wall-mounted upright (68" tall, 3x3" with 1" holes) and cannot be easily added to or removed from existing equipment. It is engineered as a permanent or semi-permanent installation for standalone use.
Can I lock the movement completely vertical?
Yes. The VBS offers two modes: locked mode for strict vertical reps ideal for hypertrophy work, or unlocked mode for natural 3D hip articulation on horizontal linear bearings. You choose based on your training goal.
Is there horizontal resistance when the system is unlocked?
No, minimal resistance. Even under 500+ lbs of load, a light nudge slides the system forward or back smoothly. This means natural hip hinging without the swing and momentum you get with free-hanging weight setups.
What is the load capacity of the VBS?
The conservative max load rating is 650 lbs. The system is built with an 8-roller foundation to handle serious front-loaded belt squat weight while maintaining smooth tracking and stability.
How much space does the VBS take up when stored?
Stored footprint is 25.5" from wall with the arm folded up. Width is 8.5" with horns removed, or 20.5" with handles installed. Remove weight horns, fold the arm, and hang footplates for an ultra-compact profile.
Can I use any belt with the VBS?
Yes, the VBS works with any standard dip or belt squat belt. However, it pairs optimally with the Bulletproof Cloud 9 Belt (maximum support and comfort under heavy loading) or CloudLite Belt (lighter, streamlined option for dynamic training).
Will future attachments be available for the VBS?
Yes. The VBS is designed as an expandable platform. A hack squat attachment is already in development, and additional attachments will be released to build out the system's capabilities.
What is the starting weight (empty) of the VBS?
The VBS has a starting weight of 83 lbs unloaded. For lifters who want a lighter "empty" feel (rehab, warm-ups, higher reps, or smaller athletes), optional Bulletproof Lift Assist counterweight options will be available as add-on accessories.
How is drop set loading on the VBS?
Plates load directly in front of you within arm's reach, making drop sets and quick weight changes fast and efficient. You don't have to leave the station or fumble with loading mechanisms.
What warranty does the VBS include?
Structural components are covered by a 1-year warranty against defects in materials and workmanship. Wear guards, consumables, and upholstery are covered for 90 days. Warranty is non-transferable and applies to the original purchaser under normal use conditions.
videos

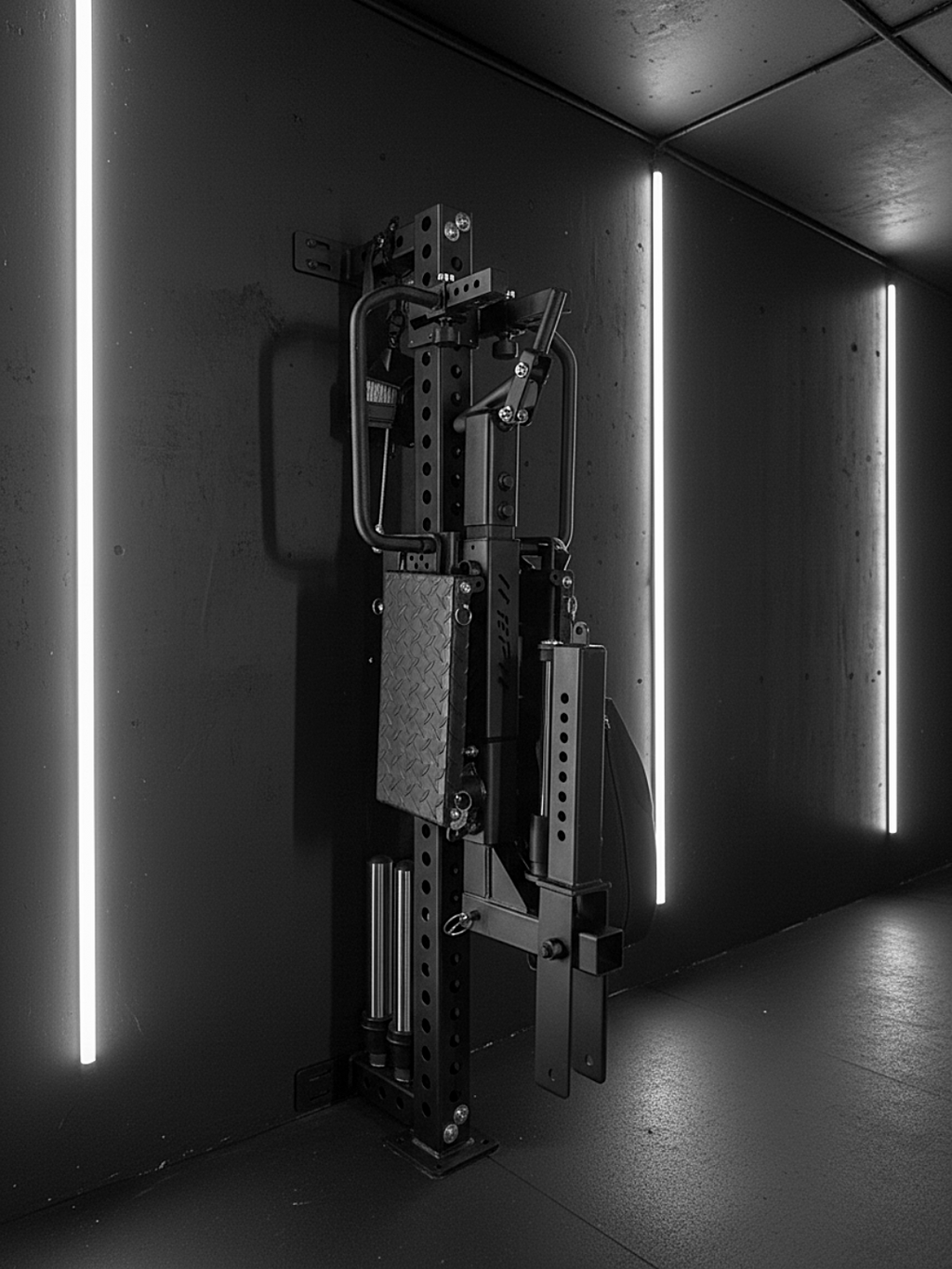

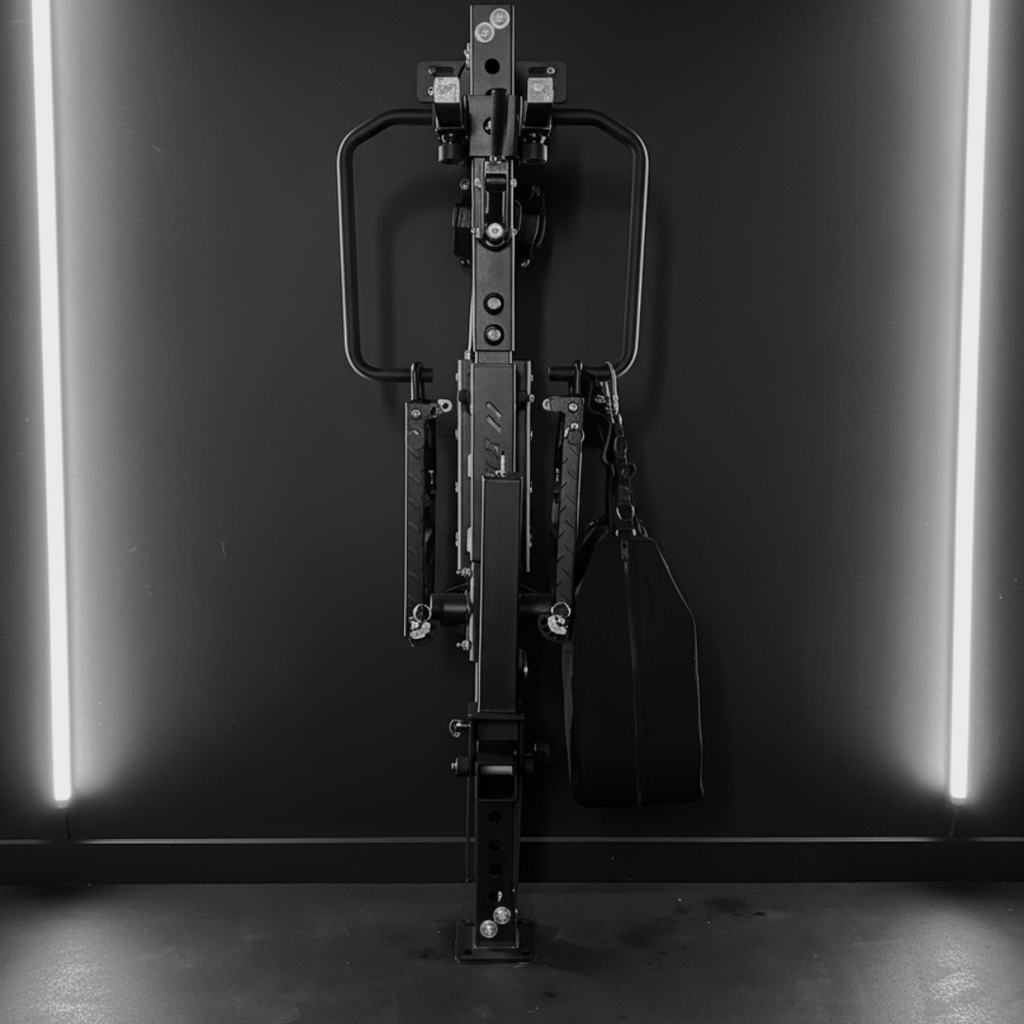

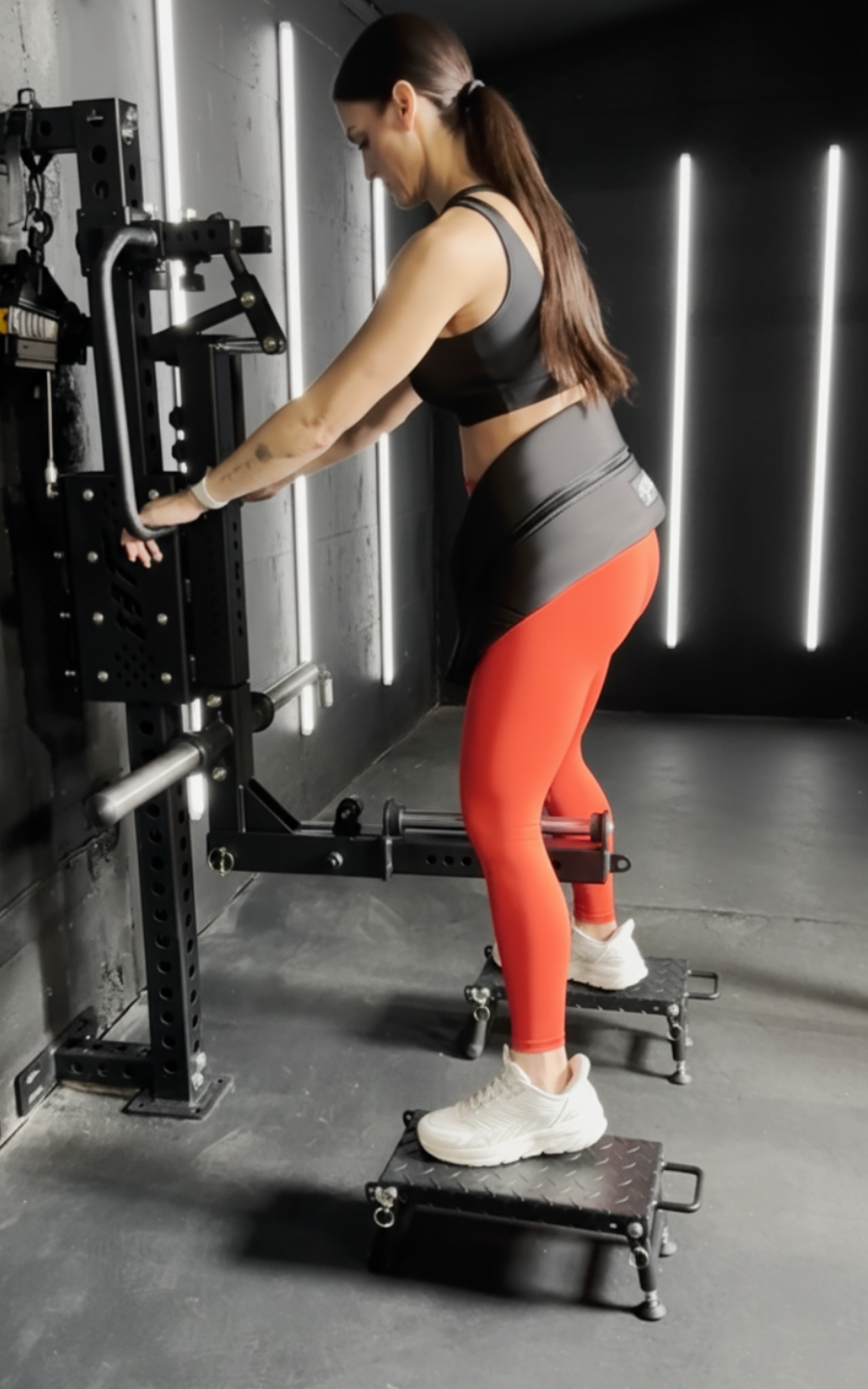

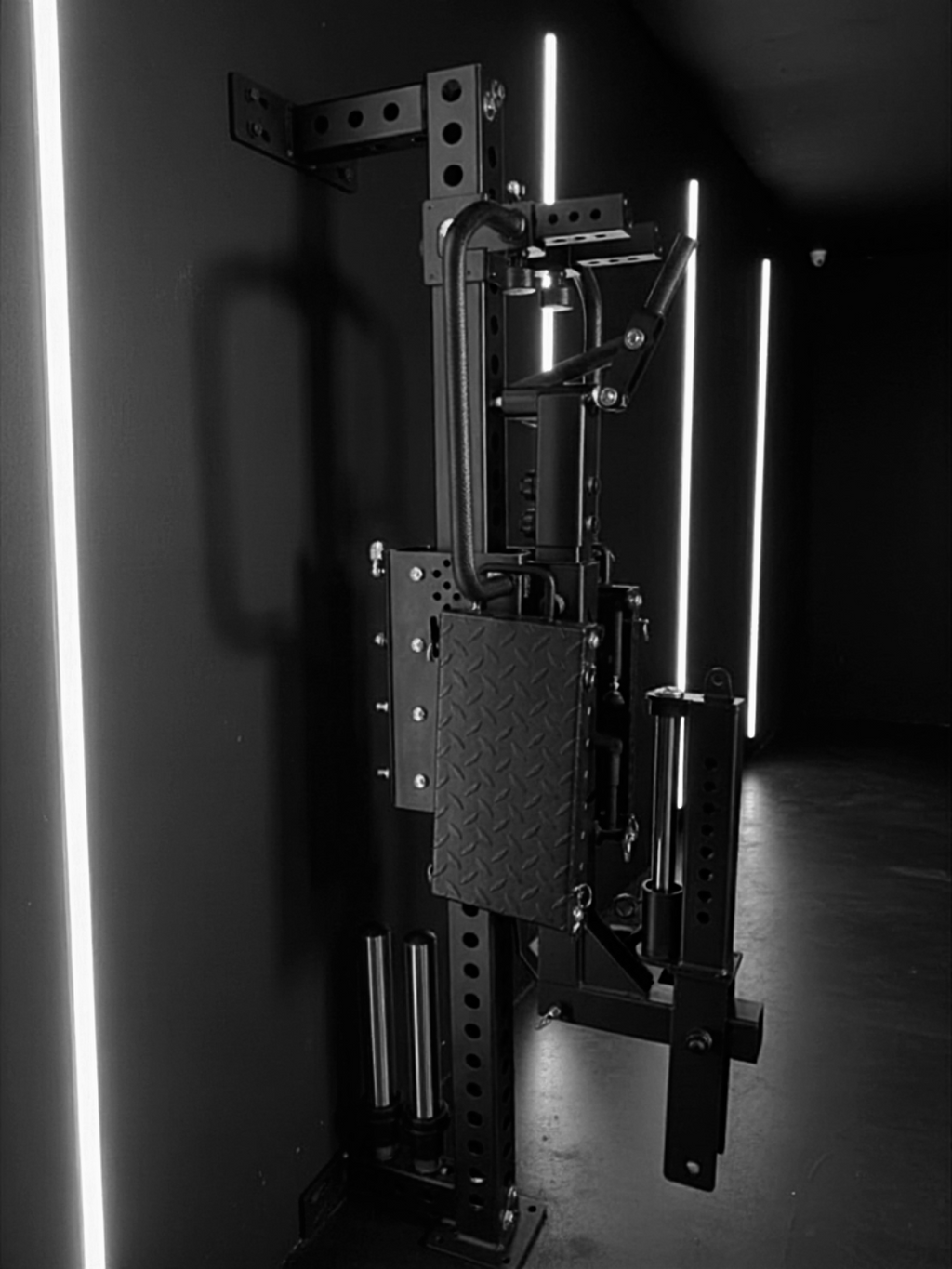

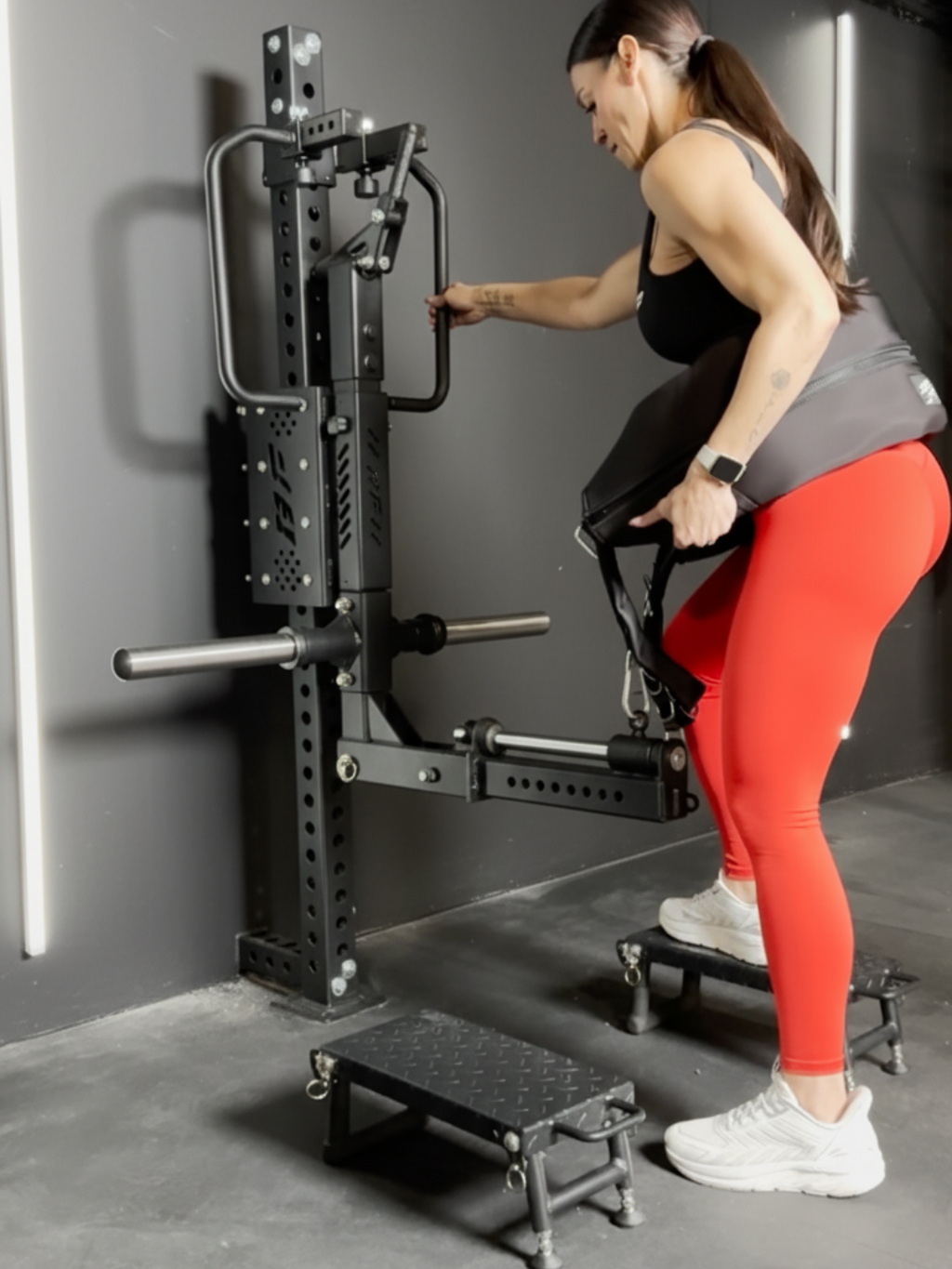

VBS Vertical Belt Squat System Works With
