ISOLATOR Removable Rear Carriage
3x3 / 1"
$164.98
Skip to product information
ISOLATOR Removable Rear Carriage
$164.98
Insured Shipping
One Year Structural Warranty
30 Day Money Back Guarantee

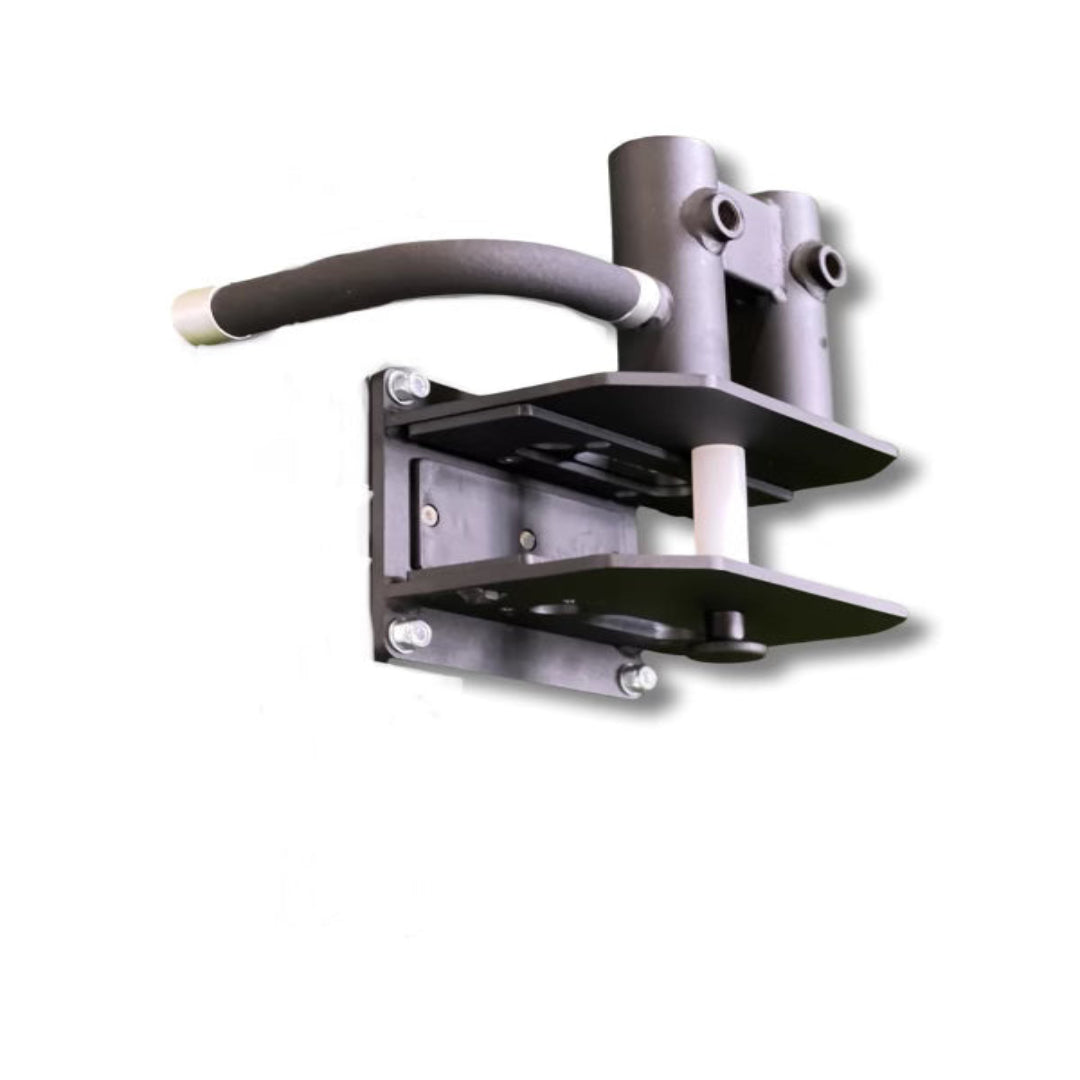

The ISOLATOR Removable Rear Carriage is a replacement carriage assembly designed to adapt your ISOLATOR unit to fit different rack upright dimensions. Instead of purchasing an entirely new unit when you upgrade to a rack with different upright sizes, simply remove four bolts and swap out the rear carriage portion.
This innovative design eliminates the need to buy a completely new machine when changing rack configurations. The carriage is engineered for quick removal and installation, making it an economical solution for equipment flexibility and system expansion.
Adapter Plate System
Comes standard with 1" pin holes. Adapter reducer plates are included with all non-1" pin sizes to reduce the hole diameter without requiring different carriage models.
Easy Swap Design
Remove four bolts to replace the entire rear carriage. No tools beyond basic hardware removal are needed, making transitions between rack sizes quick and straightforward.
Convert your ISOLATOR to fit any rack configuration without buying a new machine.
- Removable Design: Four-bolt removal system allows you to swap the rear carriage without disassembling the entire ISOLATOR unit, saving time and effort during rack transitions.
- Universal Adapter Plate System: Standard 1" pin hole with reducer plates included for 5/8", 11/16", 1/2", and 3/4" pin sizes, eliminating the need to stock multiple carriage models.
- Multiple Size Options: Available in both 3x3 and 2x2/2x3 configurations to match your specific rack upright dimensions and pin requirements.
This carriage is designed as a replacement component for the ISOLATOR machine to adapt it to different rack configurations and pin sizes.
- Works with: ISOLATOR machines (both 3x3 and 2x2/2x3 frame sizes)
- Pin Sizes Supported: 1" (standard), 5/8", 11/16", 1/2", and 3/4" (with adapter plates), or no pins needed option
- Installation: Requires removal of four bolts from your existing ISOLATOR unit
Important: When changing from a 2x2/2x3 carriage to a 3x3 carriage, your old pins will be too short and new pins of the correct size must be added with your purchase. Verify your current rack upright dimensions (3x3 or 2x2/2x3) and pin size before ordering.
- Size Options: 3x3 or 2x2/2x3
- Standard Pin Hole: 1" diameter
- Pin Size Compatibility: 1", 5/8", 11/16", 1/2", 3/4", or no pins needed
- Fastening System: Four-bolt removal and installation
- Adapter Plates: Included with all pin sizes except 1" (standard configuration)
All non-1" pin configurations include reducer adapter plates to convert the standard 1" hole to your required pin size without requiring different carriage models.
Do I need to buy a new ISOLATOR if I upgrade to a different rack size?
No. The ISOLATOR was specifically designed with a removable rear carriage so you can adapt it to different rack configurations. Simply remove four bolts and swap the carriage to fit your new rack's upright dimensions without purchasing a new machine.
What pin sizes does this carriage support?
The carriage comes standard with a 1" pin hole. It also supports 5/8", 11/16", 1/2", and 3/4" pin sizes using included adapter reducer plates. Each non-1" pin configuration includes the necessary adapter plates to reduce the hole diameter to fit your specific pins without needing a different carriage model.
What happens if I change from a 2x2/2x3 carriage to a 3x3 carriage?
When upgrading from 2x2/2x3 to 3x3, your old pins will be too short for the new carriage. You must purchase new pins of the correct size for the 3x3 carriage along with your carriage order. Make sure to verify your new rack's pin size and add the appropriate pins to your purchase.
Is special installation required to swap the carriage?
No. Installation is straightforward—simply remove four bolts from your existing ISOLATOR unit and install the new carriage in the same manner. No special tools or technical knowledge is required beyond basic bolt removal and installation.
Are adapter plates included with my order?
Adapter reducer plates are automatically included with all pin sizes except 1" (the standard configuration). Since 1" is the standard hole size on the carriage, no adapter plates are needed for that size. All other sizes come complete with their reducer plates.
