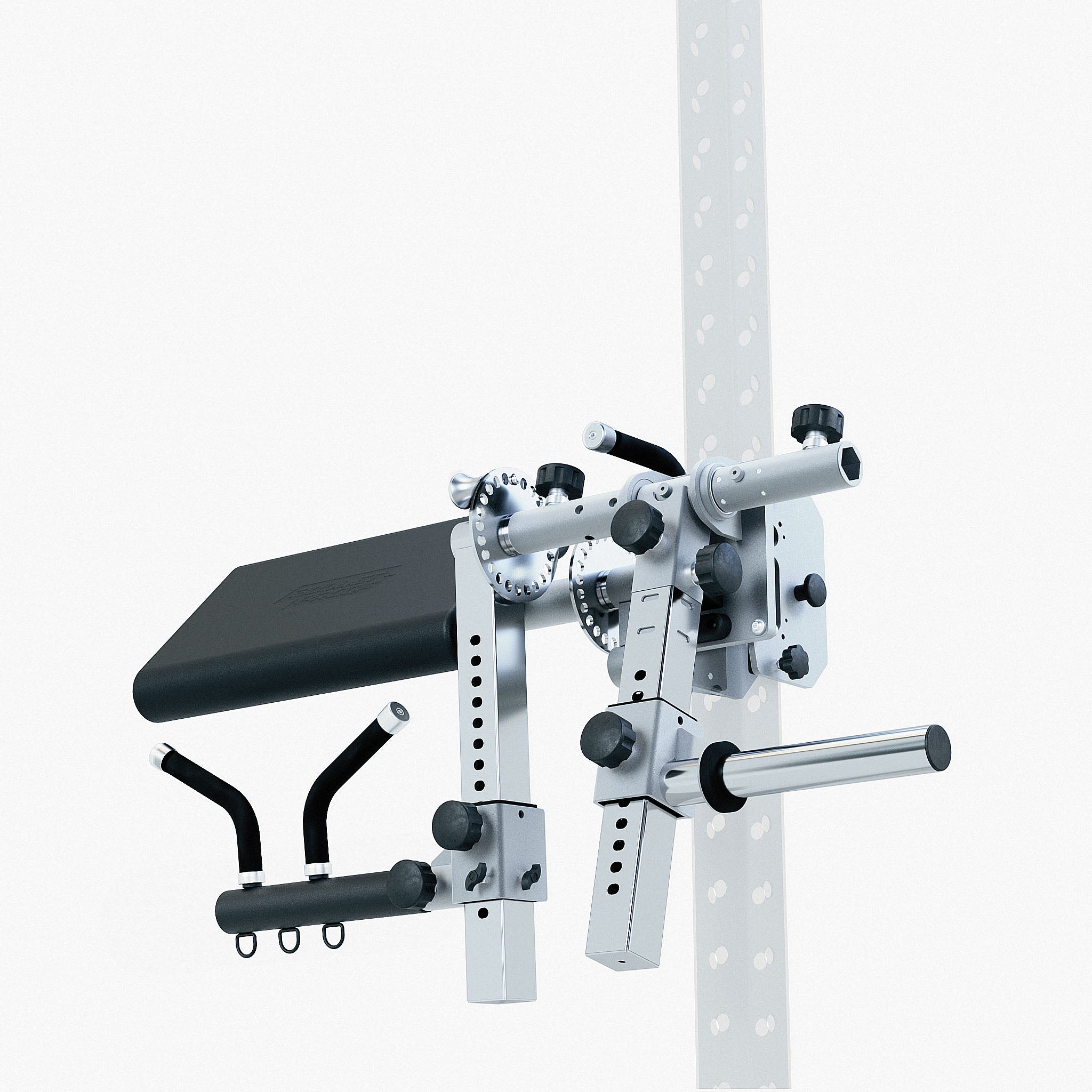

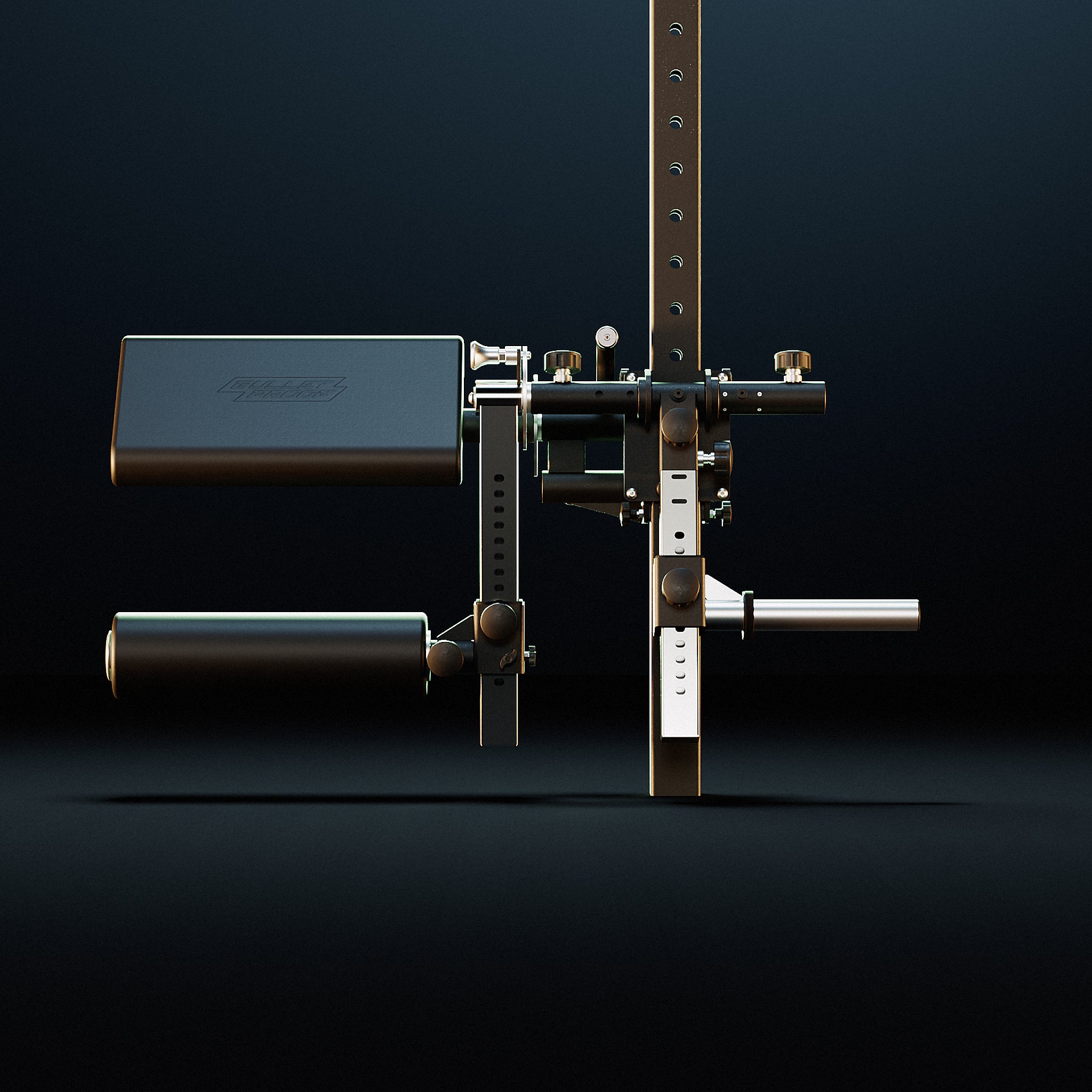

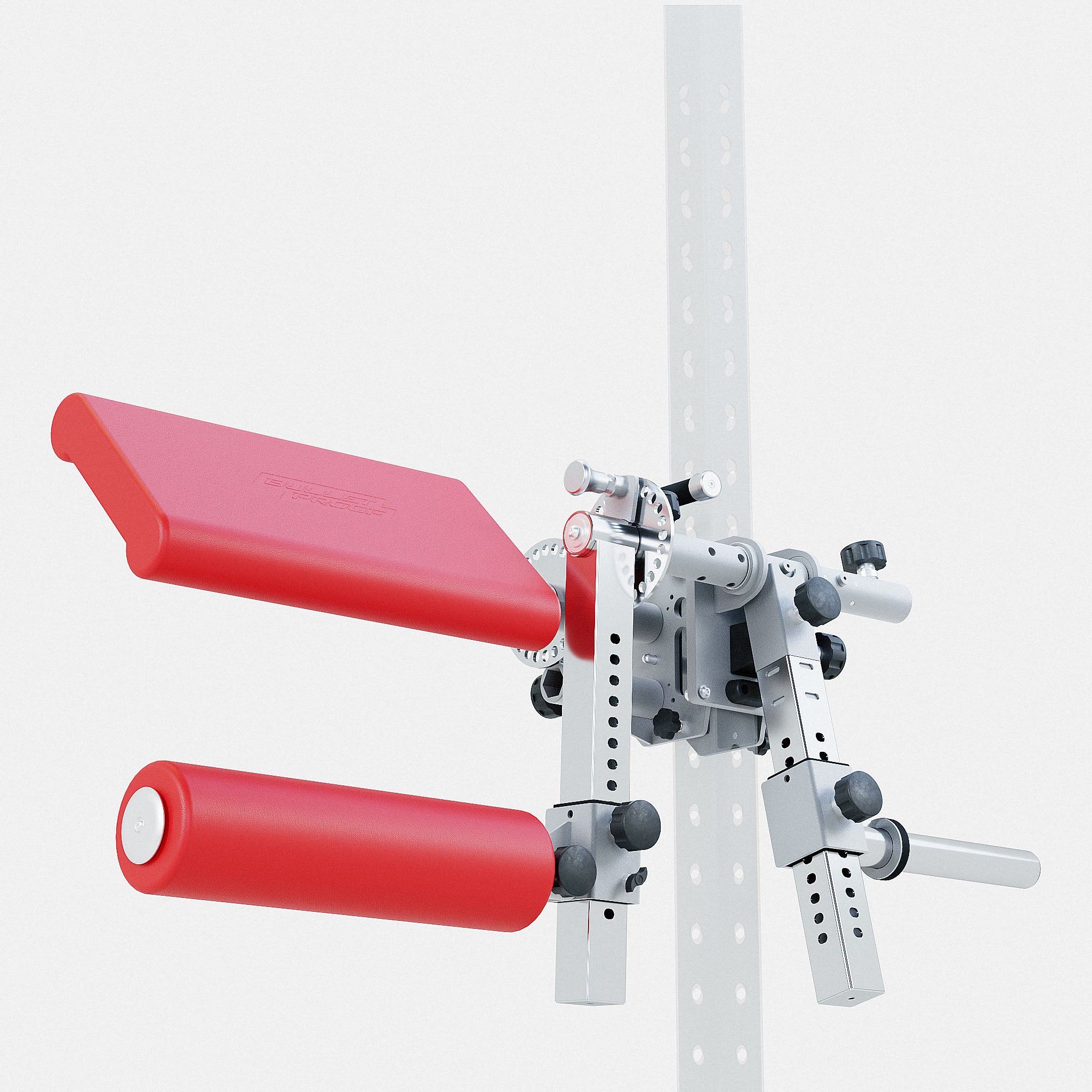

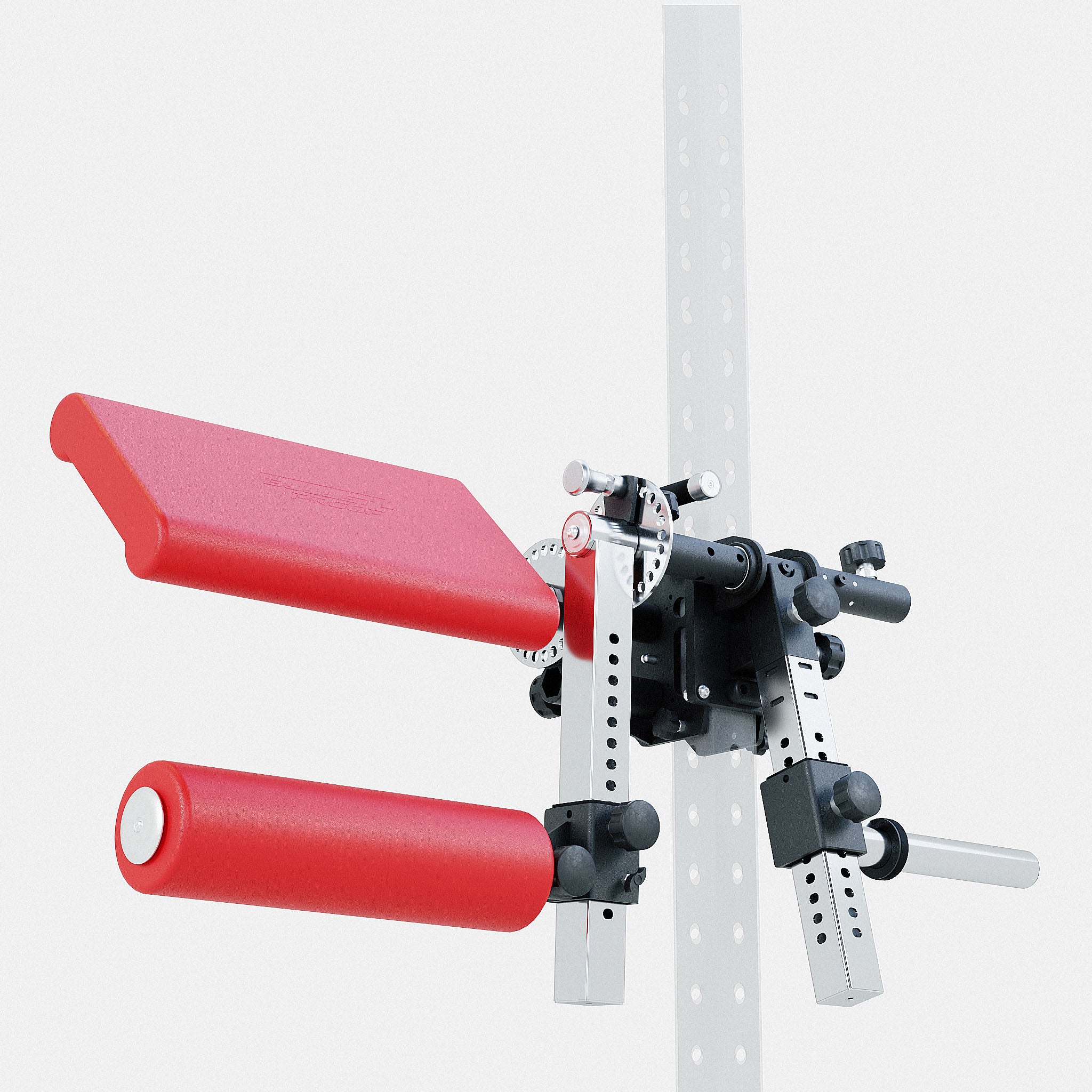

ISOLATOR 2X2/2X3
DESCRIPTION
The ISOLATOR. The most cost-effective and space-saving solution to do all of those isolated exercises you wish you could do at your limited equipment gym! This is the most simple design we’ll be dropping, but we feel it will be one of the favorites! That piece likely made many of you seeing it say, “Why didn’t anyone create this earlier?!” Not a complex unit, but one that makes so much sense.
The ISOLATOR was designed to fit a series of racks at exact measurements stated on the compatibility section of this page, and on uprights those exact sizes it works very well once it is all tightened down. Now even on a good fitting rack there are small tolerances in each attachment from leg pad to lever arm to carriage on upright and once all is assembled and on the rack the weight of all parts will close those small gaps and can cause a very small lean in the pad and unit. This is small and not noticed by most people at all and not enough to cause any issues. If the tilt bothers you it could be your upright isn’t true to size and it being slightly smaller causes a gap between the upright and the carriage making more of a lean or tilt. We’ve created shim kits for this if it occurs so you can look there as a solution and if it’s not that, but just that any slight lean at all bothers you it may not be a unit for you. We’ve seen in almost all cases the unit fits good and if not then the shims fix the issue nicely, but we like to put all information out there so each customer is informed and can make the best decision if the unit is for them and if so what’s needed to ensure they have the best experience.
To see more possible variations the ISOLATOR can do follow: https://www.instagram.com/bulletproof_fitness_equipment/
COMPATIBILITY
WHAT'S INCLUDED?
In addition to the carriage, lever arm and weight arm you receive the following items with your ISOLATOR
- Seat/Pad
- Long Leg Pad
- Curl Arm Attachment
- Pins (and reducer plates and screws if you order any pin other than 1") *Only the upper pin is needed
ISOLATOR 2X2/2X3
The rack attachment that made people ask, “Why didn’t anyone build this sooner?” The ISOLATOR 2X2/2X3 is a compact, cost-effective solution for adding isolated lower and upper body movements to a rack setup without dedicating floor space to multiple standalone machines.
Videos
Reviews, awards, demos, and exercise examples featuring the ISOLATOR.
What’s Included
In addition to the carriage, lever arm, and weight arm, your ISOLATOR includes:
- Seat / Pad
- Long Leg Pad
- Curl Arm Attachment
- Upper Pin
- Reducer plates and screws if you order any pin other than 1"
Compatibility
Rack Fitment
- Fits on 2x2 / 2x3 rig posts
- Hole spacing does not affect setup
- Designed around exact rack measurements listed on the product page
Pin Size Options
- 1"
- 3/4"
- 5/8"
- 1/2"
- 11/16"
Fitment Note
On properly sized uprights, the unit is designed to fit and tighten down well. Small tolerances in attachments and upright sizing can sometimes create a slight lean, which is why shim kits are a helpful solution if needed.
Why the ISOLATOR Wins in Real Gyms
Adds More Exercises Without More Machines
Turn your rack into a more capable training station instead of filling your floor with single-purpose equipment.
Simple Design That Just Makes Sense
The appeal of the Isolator is that it solves a real training problem with a clean, practical design.
Better Value Per Square Foot
Especially useful in home gyms and limited-space facilities where every inch and every dollar matter.
Built for Real Rack Owners
Multiple pin options and rack-focused compatibility make it easier to integrate into existing setups.
Comparison: ISOLATOR vs Standalone Machines
Bottom Line
If you want more isolated exercise options without committing to more full-size machines, the ISOLATOR is the smarter use of space.
FAQ
What rack does it fit?
The ISOLATOR 2X2/2X3 is designed to fit 2x2 and 2x3 rig posts.
Does hole spacing matter?
No. Hole spacing does not affect setup.
What pin sizes are available?
Available pin sizes are 1", 3/4", 5/8", 1/2", and 11/16".
What comes with it?
You receive the seat/pad, long leg pad, curl arm attachment, and the necessary pin hardware. Reducer plates and screws are included when needed for non-1" pin selections.
What if there is a slight lean or tilt?
Small tolerances can create slight variation depending on the upright. Shim kits can be used to help dial in fitment when needed.
Is this still a good fit for limited-space gyms?
Yes. That is one of its biggest strengths — more isolated exercise variety without adding more bulky standalone equipment.
The Bottom Line
The ISOLATOR 2X2/2X3 gives rack owners a smarter way to unlock more isolated training without adding more bulky equipment.
More function. Less wasted space.
clearance dimensions
Dimensions include a 17.5” 45lbs weight plate applied to ensure swinging clearance
Dimensions and Weight Capacity
265 lbs on Seat/Pad without Kickstand Support Leg--- Up to 500 kg / 1,100 lbs with the Kickstand Support Leg
275 lbs
Length 20 1/2" / Width 2 12" / Depth 2 1/8" / Weight ≈10lbs
Length 25" / Width 2 1/4" / Width with Hex Shaft 8" / Depth 2 1/2" / Weight ≈20lbs
Length 13 1/8" / Length on Attachment 18 1/2" / Thickness 2 1/2" / Height Including Hooks and Rings 13" / Weight ≈13lbs
Length with Hex Shaft 31 1/2" / Width 12 3/4" / Weight ≈26lbs
Length 19 3/8" / Length with Hex End 23 1/3" / Pad Thickness 5 1/2" / Weight ≈8lbs
Length 7" / Length with Hex end 11" / Thickness 6 1/8" / Weight ≈4lbs
Height 8 3/8" / Width 12 1/4" / Hex Port to Hex Port 18 1/2" / Weight ≈45lbs
34"
Shipping
See the chart for dimensions and weight of the boxes your ISOLATOR are shipped in
28" x 16" x 15"
82 pounds
33" x 15" x 15"
72 pounds
RACK COMPATIBILITY
The specifications listed have been sourced from the manufacturer's website. Please note that we cannot assure the absolute accuracy of these specifications. Additionally, this list does not encompass all available rack options. It's important to keep in mind that if your rack is not listed here, it is highly likely that it is still compatible; you will just need to verify its specifications.
If your rack is not a 3x3, 2x2, or 2x3, it is possible it will still work but shims might be required. Racks larger than 3x3 not compatible at this time.
This list shows compatibility for 3x3, 2x3, 2x2, not specifcally the ISOLATOR you are viewing now. Make sure you purchase the correct size.
Rack Compatibility
- American Barbell Power Racks | 3"x3" | 3/4"
- Bells of Steel Hydra Series | 3"x3" | 5/8"
- Bells of Steel Power Rack 4.1 | 2"x3" | 5/8"
- Bells of Steel Utility Power Rack | 2"x3" | 5/8"
- Bells of Steel Power Rack 5.1 | 2"x3" | 5/8"
- Bells of Steel The Brute Rack | 2"x3" | 5/8"
- Force USA My Rack | 2.4" (60mm) | 5/8"
- Griffin GR3 | 3"x3" | 1"
- Griffin GR3 Lite | 3"x3" | 5/8"
- Ironmaster IM5000 | 2.36" | 3/4"
- Powertech WB-PR | 2.36" | 1"
- PRX Profile One | 2"x3" | 5/8"
- PRX Build Limitless | 3"x3" | 5/8"
- Rep PR-5000 | 3"x3" | 1"
- Rep Omni | 3"x3" | 1"
- Rep Apollo Half Rack | 3"x3" | 1"
- Rep PR-4000 | 3"x3" | 5/8"
- Rep PR-1050 | 2"x2" | 1"
- Rep PR-1000 | 2"x2" | 1"
- Rogue Monster | 3"x3" | 1"
- Rogue Infinity Series | 2"x3" | 5/8"
- Rogue Monster Lite | 3"x3" | 5/8"
- Sorinex Power Racks | 3"x3" | 1"
- Titan T-2 | 2"x2" | 1"
- Titan T-3 | 2"x3" | 11/16"
- Titan X-3 | 3"x3" | 11/16"
- Titan Series Power Rack | 3"x3" | 26mm
- Titan Series 24 | 3"x3" | 26mm
- Valor BD-7 | 2"x2" | 1"
- Valor BD-11 | 2.5"x2.5" | 1"
- Valor BD-33 | 2"x2" | 1"
- Valor BD-41 | 2.5"x2.5" | 1"
The specifications listed above have been sourced from the manufacturer's website. Please note that we cannot assure the absolute accuracy of these specifications. Additionally, this list does not encompass all available rack options. It's important to keep in mind that if your rack is not listed here, it is highly likely that it is still compatible; you will just need to verify its specifications.
CUSTOMER SHIM RECOMMENDATIONS
See how other customers have used shims on their racks with their ISOLATOR.
REP PR-4000
Used 1 - 1mm shim on each side.
REP PR-5000
Add 2mm in shims, 1mm shim on each side in addition to the shims in place on the ISOLATOR as it comes.
REP PR-5000 WITH ARES ATTACHMENT
1) Carriage on the right front upright with attachment ports facing inside the rack.2) While facing the rack, left carriage side with 2x 2mm shims 'only' (removed the factory ~1.5mm shim). Used the new longer bolts.3) Left the right side alone.
2.3 x 2.3 RACK
For a snug fit it would be a total of 2 count 5mm shim kits plus 2 count 2mm shim kits.
